1. Product Overview

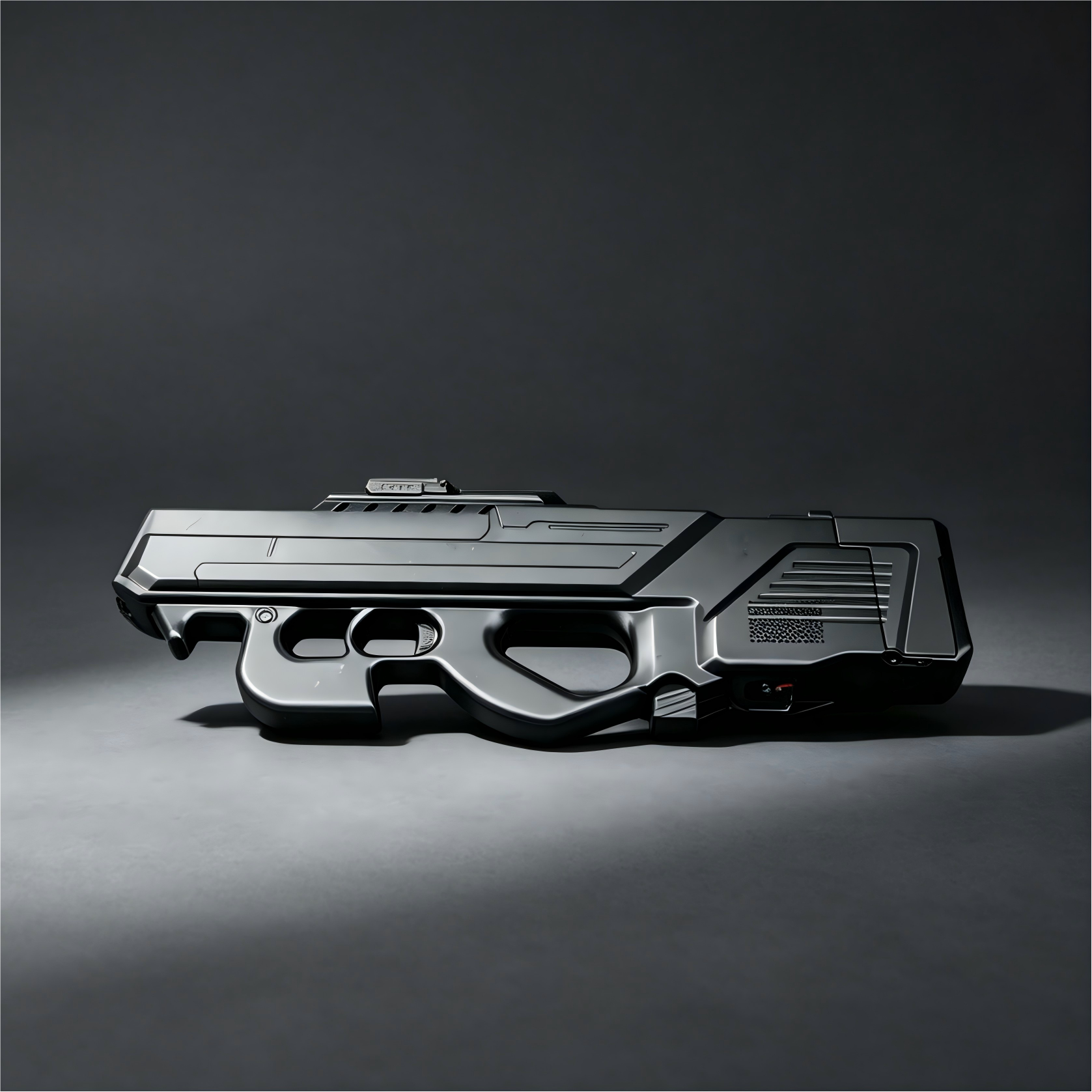

This electromagnetic launcher adopts electromagnetic launch technology without gunpowder. It features low noise and quick response, designed to engage unprotected live targets within 50 meters for non-lethal dispersal and crowd control. The compact and lightweight body works reliably under wide temperature conditions.
2. Technical Specifications
表格
| No. | Item | Parameters |
|---|---|---|
| 1 | Combat Target | Unprotected living targets within 50 meters |
| 2 | Projectile Diameter | 9 mm |
| 3 | Projectile Length | Max. 15 mm |
| 4 | Projectile Weight | Min. 10 grams |
| 5 | Muzzle Velocity | Min. 120 m/s |
| 6 | Dispersion (50 m) | R50 ≤ 0.05 m |
| 7 | Firing Rate | Min. 60 rounds per minute |
| 8 | Magazine Capacity | Min. 5 rounds |
| 9 | Firing Noise | ≤80 decibels (measured at 1.5 m from the launcher) |
| 10 | Combat Readiness Time | ≤5 seconds |
| 11 | Battery Endurance | Min. 20 continuous shots at 20℃ |
| 12 | Total Weight | ≤5.5 kg |
| 13 | Overall Dimension | ≤800 mm × 120 mm × 250 mm |
| 14 | Operating Temperature | -20℃ ~ +55℃ |
3. Operation Instructions
- Pre-combat Check: Inspect the body and battery, insert the loaded magazine.
- Unlock the safety switch, aim at the target within 50 meters, and pull the trigger to fire.
- Replace the magazine quickly for sustained firing.
4. Safety Precautions
- Do not aim at human vital parts for safety; only use standard 9mm projectiles.
- Keep the safety locked when not in use.
- Protect the device from water ingress to avoid circuit damage.
5. Maintenance
- Clean the bore and feed channel after each use.
- Store the battery with half charge in cool and dry conditions.
- Do not disassemble the internal coil and circuit without professional guidance.
